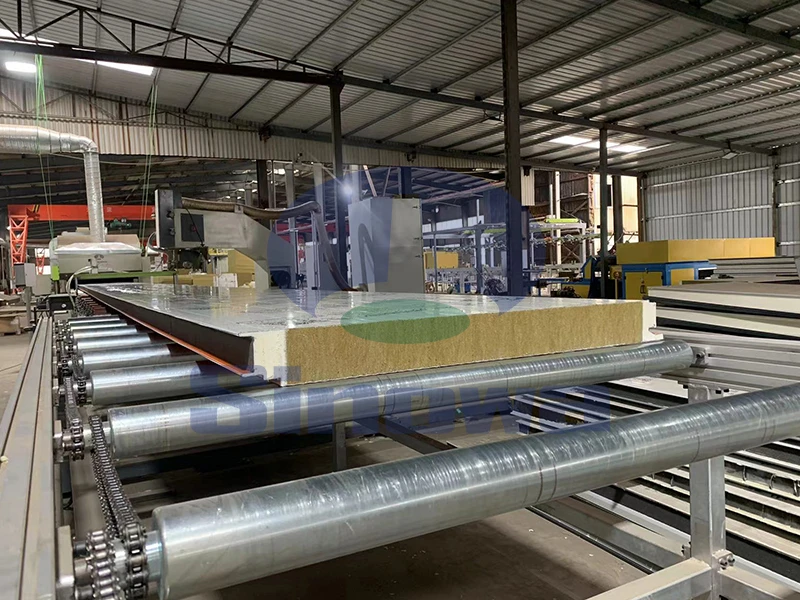

Color Steel Rock Wool Sandwich Panel Line

Publication Date: Oct 5, 2026

The color steel rock wool sandwich panel line is an integrated automated production system for manufacturing high-performance building insulation panels. It integrates multiple processing procedures to bond color steel sheets and rock wool cores stably, delivering durable, fireproof and heat-insulating panel products for construction industries.

The entire operation of the color steel rock wool sandwich panel production line starts with raw material feeding and preprocessing, which lays a solid foundation for subsequent precise composite processing. The system is equipped with automatic uncoiling and leveling units dedicated to handling color steel coil materials. During long-term storage and transportation, coiled steel sheets often generate internal stress, surface wrinkles and uneven flatness, which will affect the final panel quality. The preprocessing unit slowly releases the steel coils at a constant speed and uses multi-stage leveling rollers to eliminate structural deformation and surface flaws, ensuring the steel sheets maintain a smooth, flat and uniform state. Meanwhile, the rock wool core materials are sorted and tidied automatically to remove broken scraps and uneven blocks, guaranteeing consistent core material specifications for every panel and avoiding quality differences caused by raw material irregularities in the later production stage.

Following raw material preprocessing, the color steel sheets enter the precision roll forming process, a key step that shapes the basic structural profile of panel surfaces. This processing unit consists of dozens of groups of high-precision profiled rollers arranged in scientific order, adopting a progressive multi-pass extrusion molding technology. Different from one-time stamping forming, the gradual rolling mode slowly changes the flat steel sheet into the required three-dimensional structural shape through repeated uniform extrusion, which effectively prevents steel sheet cracking, deformation and surface damage. The roller spacing and operating speed can be adaptively adjusted according to different panel design requirements, realizing flexible molding of various edge and surface structures. This precise forming process ensures the dimensional uniformity and structural compatibility of upper and lower steel sheets, facilitating seamless composite bonding with rock wool core materials in subsequent procedures.

Gluing treatment serves as a decisive process for the bonding firmness and overall service life of finished sandwich panels, and the production line is equipped with an intelligent automatic gluing system to replace traditional manual gluing operations. The high-precision gluing device can quantitatively and evenly spray high-performance adhesive on the inner surfaces of formed upper and lower color steel sheets as well as the upper and lower sides of rock wool core materials. It precisely controls the glue output, spraying range and coating thickness through intelligent sensing modules, completely avoiding common problems such as uneven glue layers, missing coating and excessive glue accumulation in manual operation. A uniform adhesive layer can fully fill the tiny gaps between steel sheets and rock wool cores, enhance the interfacial adhesion, and effectively prevent delamination, peeling and hollowing of panels during long-term use, greatly improving the overall structural stability of finished products.

Core material arrangement and positioning is a meticulous intermediate process that ensures the overall performance consistency of sandwich panels. After gluing is completed, the sorted rock wool core materials are automatically conveyed to the assembly station for precise laying and alignment. The production line adopts synchronous positioning and conveying structures to keep the rock wool cores neatly arranged without offset, dislocation or gap accumulation. The system can adjust the arrangement density and lap mode of rock wool cores according to different panel thickness and performance demands, ensuring the core material fills the entire internal space of the steel sheet frame completely. Reasonable core material arrangement not only guarantees the uniform heat insulation and sound insulation performance of each part of the panel, but also optimizes the overall compression resistance and structural balance, avoiding local performance attenuation caused by irregular core material distribution.

Constant temperature and constant pressure composite pressing is the core working procedure of the entire production line, which completes the integral compounding of steel sheets and rock wool core materials. The assembled semi-finished panels are stably sent into the double-crawler composite pressing unit with upper and lower circulating crawler structures. The high-strength wear-resistant crawler belts cover the entire width of the panels and apply continuous and uniform vertical pressure, thoroughly eliminating local stress concentration and uneven bonding. The intelligent temperature control system maintains a stable operating temperature in the pressing area, which can fully activate the adhesive activity and promote rapid and tight integration between layers. The coordinated control of constant temperature and constant pressure enables the adhesive to cure stably, forming an integrated composite structure with tight combination, high bonding strength and no internal gaps.

Edge sealing treatment is an essential finishing process to optimize the structural integrity and service adaptability of sandwich panels. After composite pressing, the edges of preliminary formed panels may have exposed rock wool cores, uneven laps and loose structures, which will affect the durability and installation effect of the products. The production line is equipped with automatic edge sealing units that perform precise trimming and sealing on panel edges. The device cuts off excess core materials and redundant steel sheet edges to ensure neat and consistent panel dimensions, and applies special sealing materials to seal the edge gaps completely. Effective edge sealing can prevent external moisture, dust and air from penetrating into the panel interior, avoid rock wool core material damp deformation and performance degradation, and enhance the overall waterproof, dustproof and anti-aging capabilities of the panels.

Fixed-length cutting and precise shaping is the key process to obtain standardized finished panel products. The production line adopts advanced servo fixed-length cutting technology, which supports flexible setting of cutting parameters according to different application and customization needs. The high-precision servo positioning system tracks the operating speed and position of composite panels in real time, realizing dynamic and accurate cutting without shutdown waiting. The cutting tools are made of high-hardness alloy materials, featuring durable sharpness and stable cutting performance, which can form flat and smooth incisions without burrs, cracks or deformation. This automated cutting process not only ensures the dimensional accuracy and uniformity of each finished panel, but also greatly improves production efficiency and reduces material waste caused by manual cutting errors.

Post-curing and quality inspection processes ensure the long-term stability and qualified rate of finished sandwich panels. After cutting and shaping, the panels are transported to the constant-temperature curing area for natural standing and adhesive secondary curing, which further enhances the bonding tightness and structural stability of composite layers and eliminates residual internal stress generated during pressing and cutting. Subsequently, the intelligent inspection system conducts comprehensive detection on panel surface flatness, bonding integrity, dimensional accuracy and edge sealing effect. It automatically screens out unqualified products with delamination, deformation, uneven size and defective sealing, ensuring all delivered products have stable and reliable comprehensive performance and meet practical application requirements.

Automatic stacking and packaging is the final link of the entire production line, realizing standardized storage and transportation of finished products. Qualified panels are automatically sorted, arranged and stacked in order by the mechanical transmission system, with adjustable stacking height and arrangement mode to adapt to different storage and transportation conditions. The automatic packaging unit wraps the stacked panels with protective materials to prevent surface scratches, dust pollution and collision damage during handling and transportation. The whole process is fully automated without manual intervention, which not only improves packaging efficiency and neatness, but also effectively protects the finished product quality, facilitating subsequent storage, transportation and on-site construction and installation.

The color steel rock wool sandwich panel line features high automation, stable operation and flexible production performance, bringing prominent advantages to modern building material manufacturing. The integrated mechanical and electrical control system realizes synchronous operation of all processing units, reducing manual operation errors and labor costs while improving overall production continuity. The adjustable production parameters enable the line to manufacture panels with different thicknesses and structural specifications, meeting diverse application scenarios in building exterior walls, interior partitions, thermal insulation and sound insulation projects. With reliable production performance and stable product quality, this production line has become core equipment for efficient and intelligent manufacturing of high-performance building insulation panels.
