Full Automatic Rock Wool Sandwich Panel Line

Publication Date: Oct 6, 2026

The full automatic rock wool sandwich panel line is an integrated intelligent manufacturing system for continuous composite panel production. It automates all core processes from raw material feeding to finished panel stacking, delivering high-insulation, fireproof building panels with stable quality and high production efficiency.

Core System Overview and Operational Advantages

The full automatic rock wool sandwich panel line is a highly integrated and intelligent manufacturing solution tailored for the mass production of high-performance composite building panels. Unlike traditional semi-automatic production equipment that relies heavily on manual operation and segmented processing, this integrated line realizes seamless connection of all production procedures through optimized mechanical structures and intelligent control systems. It covers every key link including raw material pretreatment, surface plate forming, core material arrangement, precision gluing, composite lamination, constant-temperature curing, fixed-length cutting and automatic stacking. The entire production process requires minimal manual intervention, effectively eliminating quality fluctuations caused by human operation errors. This systematic production mode not only greatly improves overall production efficiency but also ensures consistent product appearance, structural performance and dimensional accuracy in each batch of finished panels. In modern building material manufacturing, this automated line has become a core equipment choice for producing energy-saving and fireproof decorative and structural panels, adapting to the large-scale and standardized production needs of the construction industry.

Raw Material Feeding and Pretreatment Process

Raw material feeding and pretreatment serve as the foundational stage of the entire rock wool sandwich panel production workflow, directly determining the stability of subsequent processing and the quality of finished products. The line is equipped with fully automatic feeding units for both metal surface coils and rock wool core materials, realizing continuous and uninterrupted material supply. For metal coil raw materials, the automatic uncoiling device performs stable and uniform material release, with built-in tension adjustment functions to avoid coil deviation, wrinkling or uneven stretching during feeding. This precise tension control ensures the flatness of the surface plate in subsequent forming and composite processes. For rock wool core materials, the automatic feeding and sorting unit completes orderly arrangement, thickness calibration and surface impurity removal. It automatically screens out unqualified core materials with uneven density and damaged structures, and precisely adjusts the laying thickness of rock wool according to production demands. The integrated pretreatment mechanism unifies the specifications of raw materials, eliminates the adverse effects of raw material differences on product quality, and lays a solid foundation for standardized and high-efficiency follow-up production operations.

Precision Roll Forming for Surface Panels

Surface panel roll forming is a key process that shapes the outer structural performance and appearance of rock wool sandwich panels. The full automatic production line is equipped with a multi-group precision roll forming unit, which adopts graded rolling and gradual forming technology to process flat metal coils into various required plate profiles. Each rolling group is precisely calibrated through digital control systems to ensure uniform stress on the metal plate during deformation, effectively avoiding structural defects such as plate cracking, uneven radian and surface indentation. The forming unit supports flexible adjustment of forming parameters, enabling rapid switching between different panel specifications and profile shapes to meet diverse application scenarios of building exterior walls, interior partitions and roof panels. In addition, the roll forming process is equipped with real-time monitoring modules to track the dimensional accuracy and surface flatness of formed plates throughout the process. Once slight deviations are detected, the system will automatically fine-tune the rolling parameters without stopping production. This intelligent forming mode not only improves the forming qualification rate of surface panels but also shortens the mold switching and parameter adjustment cycle, greatly enhancing the flexible production capacity of the entire line.

Intelligent Gluing and Bonding Technology

Gluing treatment is the core link that determines the bonding strength and overall structural stability of sandwich panels, and the full automatic line adopts advanced non-contact synchronous gluing technology to replace traditional manual and roller gluing methods. The system realizes double-sided synchronous gluing on the inner surfaces of upper and lower metal panels, with evenly distributed adhesive layers and controllable coating thickness. Different from traditional gluing processes that are prone to uneven glue amount, glue leakage and local missing glue, the intelligent gluing unit adjusts spraying flow, range and density in real time according to the texture and specification of surface materials, ensuring that each area of the plate can obtain a uniform and effective adhesive coating. The adopted environmental-friendly polymer adhesive has excellent compatibility with metal plates and rock wool core materials, forming a stable bonding interface after curing. Moreover, the gluing system has an automatic cleaning and anti-blocking function, which regularly cleans the spraying channels during intermittent production to avoid glue residue solidification affecting subsequent gluing quality. This precise and intelligent gluing process significantly improves the bonding firmness between the surface layer and core layer, effectively preventing panel delamination and deformation in long-term use.

Automatic Rock Wool Core Material Arrangement

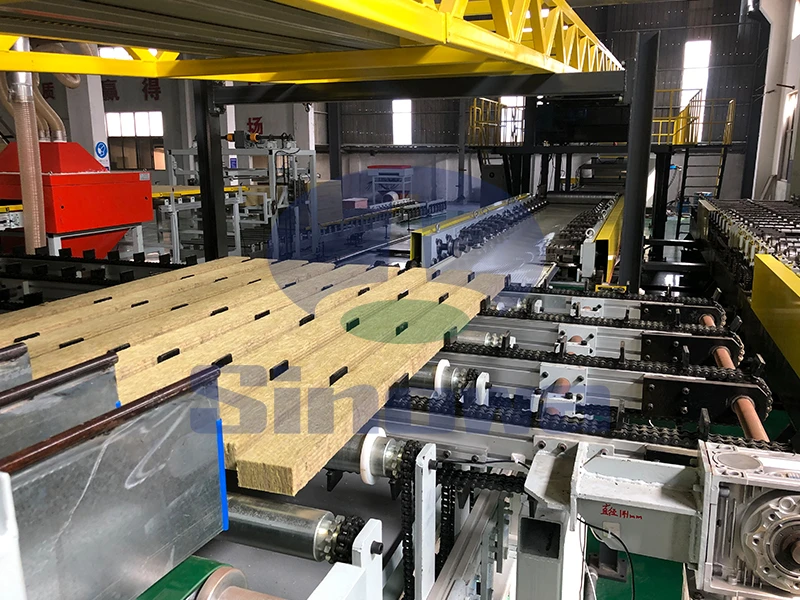

The arrangement and laying of rock wool core materials directly affect the thermal insulation, fire resistance and overall mechanical performance of finished sandwich panels. The full automatic production line is equipped with a special rock wool core material automatic arranging system, which realizes intelligent cutting, rotating and orderly laying of rock wool blocks. The system can automatically cut bulk rock wool raw materials into standard specification strips according to production requirements, and adjust the laying direction and gap spacing of core materials in real time to ensure the compact and uniform arrangement of the rock wool core layer. For roof panels with special rib structures, the system can automatically fill matching rock wool filler strips into the rib gaps, eliminating hollow areas inside the panels and optimizing the overall structural integrity. In the whole arrangement process, mechanical automatic operation replaces manual splicing, avoiding loose core laying, uneven density and large splicing gaps caused by manual errors. The uniformly arranged rock wool core layer enables the finished panel to have consistent thermal insulation and fire resistance in all parts, while improving the overall compression resistance and structural stability of the panel, making the product more adaptable to complex building usage environments.

High-precision Composite Lamination Process

Composite lamination is the key process to integrate metal surface plates and rock wool core materials into an integral sandwich panel structure. The full automatic line adopts a continuous flat lamination technology, with a precision lamination unit that provides stable and uniform pressing force throughout the composite process. Before lamination, the preheating unit first performs uniform temperature treatment on the glued surface plates and rock wool core materials to activate the activity of the adhesive, accelerating the subsequent curing and bonding speed. During lamination, the system precisely controls the pressing pressure, lamination speed and plate gap to ensure that the surface layer and core layer are closely fitted without extrusion deformation of the rock wool core material. The whole lamination process maintains continuous and stable operation, avoiding intermittent pressure changes that may cause uneven bonding. In addition, the lamination unit is equipped with a deviation correction system, which can automatically correct the left and right deviation of the plate during operation to ensure the overall flatness and dimensional consistency of the composite panel. This high-precision composite technology effectively improves the overall compactness of the sandwich panel, enhances the combination degree between different material layers, and lays a good foundation for the subsequent curing and forming process.

Constant-temperature Curing and Structural Forming

Constant-temperature curing is a crucial step to stabilize the bonding structure and finalize the performance of rock wool sandwich panels. After composite lamination, the semi-finished panels enter the intelligent constant-temperature curing channel for continuous heat preservation and curing treatment. The curing system adopts segmented temperature control technology, which sets reasonable temperature gradients in different sections of the curing channel according to the curing characteristics of the adhesive. This segmented temperature control mode enables the adhesive to complete gradual polymerization and curing reaction, avoiding the problems of incomplete curing caused by insufficient temperature or adhesive aging and performance degradation caused by excessive high temperature. The closed curing channel maintains a stable internal temperature and humidity environment, ensuring that each batch of panels undergoes consistent curing procedures. With the completion of the curing reaction, the adhesive forms a high-strength bonding layer, permanently integrating the metal surface plate and rock wool core layer into a stable whole. The cured panels have stable structural performance, no delamination or warping, and their comprehensive mechanical properties and insulation performance reach the optimal state, realizing the final structural forming of the product.

Automatic Fixed-length Cutting and Finishing

After curing and forming, the continuous integral panel will complete fixed-length cutting and edge finishing through the automatic cutting unit to meet the standardized delivery specifications. The line adopts high-precision servo cutting equipment, which can automatically identify and set cutting lengths according to production parameters, realizing non-stop continuous cutting of panels. The servo control system ensures extremely high cutting accuracy, with smooth and flat cutting sections without burrs, cracks or edge collapses. Different from traditional fixed-size cutting equipment with single function, this cutting unit supports flexible switching of multiple cutting lengths to meet the personalized specification requirements of different projects. Meanwhile, the system is equipped with an automatic edge trimming and finishing mechanism, which fine-polishes the cutting edges and corners of the panels to eliminate sharp edges and surface flaws. In addition, the cutting process is matched with a real-time counting and sorting function, which automatically classifies and counts finished panels of different specifications. This fully automatic cutting and finishing process not only improves the dimensional accuracy and appearance quality of finished products but also greatly saves manual sorting and trimming labor costs, optimizing the overall production efficiency.

Intelligent Detection and Quality Control System

Quality control runs through the entire production process of the full automatic rock wool sandwich panel line, relying on a complete intelligent detection system to realize full-process quality monitoring and screening. The line is equipped with multiple real-time detection modules, which respectively monitor raw material quality, gluing uniformity, lamination compactness, curing effect and finished product dimensional accuracy. The intelligent system automatically collects production data in real time, compares it with preset production parameters, and judges the product quality status. Once abnormal parameters such as uneven gluing, insufficient pressing force or dimensional deviation are detected, the system will immediately send an early warning and automatically adjust the corresponding equipment parameters, or mark the unqualified products for subsequent screening. After production, the finished product detection module further inspects the overall flatness, bonding strength and surface quality of the panels. All detection data is automatically recorded and stored to form a complete production quality traceability file. This full-process intelligent quality control mode eliminates manual detection errors, realizes precise control of product quality, and ensures that all delivered finished panels have stable and reliable comprehensive performance.

Automatic Stacking and Post-production Processing

The final stage of the production line is automatic stacking and auxiliary post-production processing, which realizes unmanned finishing of finished products and improves the overall automation level of production. The qualified finished panels after detection are automatically transported to the stacking area through the conveying system, and the intelligent stacking unit completes orderly and standardized stacking according to preset stacking specifications. The stacking equipment has precise positioning and anti-collision functions, which can avoid surface scratches, corner damage and panel tilting during the stacking process, effectively protecting the appearance and structural integrity of finished products. After stacking is completed, the system can cooperate with auxiliary packaging equipment to complete automatic wrapping and sealing of panel stacks, preventing dust, moisture and collision damage during transportation and storage. The whole stacking and packaging process does not require manual participation, realizing seamless docking from production completion to finished product storage. This automatic post-production processing mode greatly improves production efficiency, reduces product damage rate, and facilitates subsequent transportation, warehousing and construction application of finished panels.

Production Line Performance and Application Value

The full automatic rock wool sandwich panel line has outstanding production performance and wide industrial application value, becoming a key equipment to promote the upgrading of building energy-saving material manufacturing. With its highly integrated automated production mode, the line achieves continuous and high-efficiency production, with significantly improved output capacity compared with traditional semi-automatic equipment. The intelligent parameter control system ensures low production error rate and high product qualification rate, reducing material waste and production cost in the manufacturing process. The produced rock wool sandwich panels integrate excellent thermal insulation, sound absorption, fire resistance and structural stability, and are widely applicable to industrial factory buildings, commercial buildings, public facilities and temporary construction projects. In addition, the equipment has flexible production characteristics, which can adapt to the production of panels with different thicknesses, specifications and appearances, meeting the diversified and personalized market demands. While improving enterprise production efficiency and economic benefits, the automated line also promotes the standardized and intelligent development of the building material manufacturing industry, providing high-quality and reliable panel products for modern energy-saving and safe building construction.
