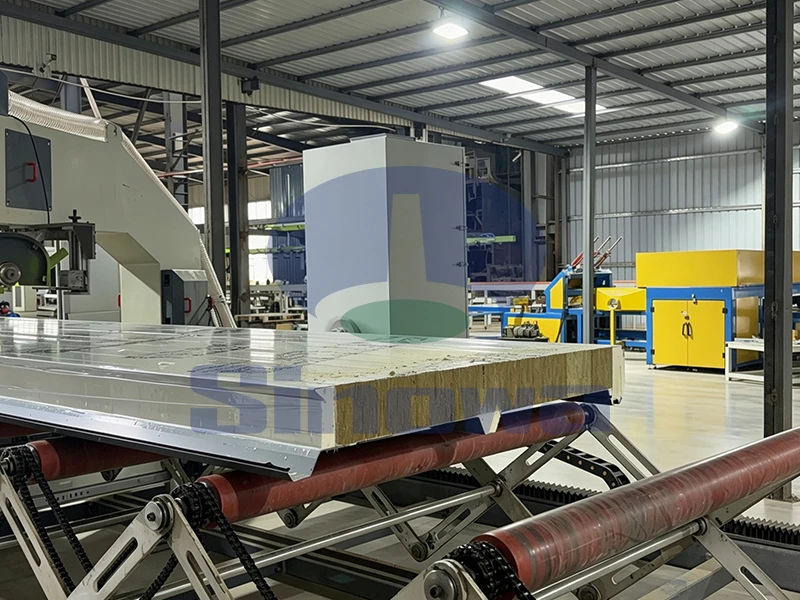

Continuous Mineral Wool Sandwich Panel Production Line

Publication Date: Oct 6, 2026

The continuous mineral wool sandwich panel production line is an integrated automated manufacturing system for high-performance composite building panels. It realizes uninterrupted streamlined production from raw material feeding to finished product output, boosting efficiency and stabilizing panel insulation, fireproof and structural performance.

Core Operational Principles of the Continuous Production Line

The continuous mineral wool sandwich panel production line operates on a seamless integrated processing principle, abandoning the fragmented and labor-intensive workflow of traditional intermittent production equipment. Its core design logic lies in the synchronous coordination of multiple functional modules, enabling one-stop manufacturing of composite panels with mineral wool as the core filler and metal sheets as the outer protective layers. The entire production process forms a closed-loop streamlined system, where raw material conveying, processing, composite bonding, curing and shaping proceed without manual interruption or repeated material handling. Different from semi-automatic production equipment that requires manual docking between processes, this continuous line realizes real-time linkage of all units through unified operational scheduling. Each processing procedure is set with matched operational rhythms to avoid production stagnation or material accumulation. The precise mechanical coordination ensures consistent structural uniformity of each panel, effectively overcoming the defects of uneven core material distribution and unstable bonding strength common in traditional production modes. This systematic operational principle lays a solid foundation for large-scale, standardized and high-quality batch production of mineral wool sandwich panels.

Overall Structural Composition of the Production Line

The complete continuous mineral wool sandwich panel production line consists of multiple independent and collaboratively matched functional units, each undertaking exclusive production tasks to form a complete manufacturing chain. The main structural modules include raw material unwinding and leveling units, mineral wool core material pretreatment systems, automatic glue application units, continuous composite laminating systems, constant-temperature curing devices, fixed-length cutting units, and automatic stacking and finishing modules. Every module is designed with adaptive structural parameters to fit the continuous production rhythm. The raw material unwinding unit stably releases metal coil materials and completes automatic leveling and trimming to ensure flat and neat outer plate substrates. The core material pretreatment unit screens, disperses and cuts mineral wool raw materials to eliminate fiber agglomeration and irregular bulk materials, making the core material specifications uniform. Subsequent glue application, laminating and curing units are closely connected to realize immediate composite processing of pretreated materials. All structural units are arranged in a linear streamlined layout, which optimizes the production path, reduces material transfer distance, and improves the overall operational efficiency of the production line while ensuring the stability of long-term continuous operation.

Raw Material Pretreatment and Feeding Process

Raw material pretreatment and feeding are the primary foundational links that determine the finished panel quality of the continuous production line, covering the processing and conveying of both outer metal sheets and inner mineral wool core materials. For metal sheet raw materials, the production line adopts automatic unwinding and continuous leveling technology to eliminate coil bending, wrinkles and thickness deviations generated during material storage and transportation. The precision trimming device automatically removes irregular edges on both sides of the metal sheet to ensure consistent width of the outer plate, providing qualified substrates for subsequent composite processing. For mineral wool core materials, the equipment conducts professional dispersion and screening treatment to break up clustered mineral wool fibers and remove impure particles and unqualified bulk materials. The pretreated mineral wool materials are automatically cut into standard strips according to preset panel specifications, and then conveyed to the composite station through a closed feeding system. The entire feeding process adopts fully automated intelligent conveying, with real-time material speed matching and material quantity monitoring functions. It avoids material shortage, accumulation and offset problems in the production process, ensures continuous and stable material supply for subsequent processes, and lays a uniform and consistent raw material foundation for high-quality composite panel molding.

Intelligent Glue Application and Bonding Technology

Glue application and bonding are key processes that affect the bonding firmness and service life of mineral wool sandwich panels, and the continuous production line is equipped with high-precision automatic glue application systems optimized for composite panel manufacturing. Different from traditional manual or semi-automatic glue spraying methods, the system realizes full-coverage and uniform glue coating on the inner surface of upper and lower metal sheets through multi-group synchronous glue spraying components. It can adaptively adjust glue application thickness and glue amount according to different production specifications, effectively avoiding quality problems such as local glue shortage, excessive glue accumulation and uneven coating. The production line adopts environmentally friendly composite adhesives with excellent adhesion and weather resistance, which can form stable bonding layers between metal sheets and mineral wool core materials. Before glue application, the metal sheet surface will be slightly cleaned and activated by the pre-processing device to enhance the adhesion between the adhesive and the substrate. In the continuous production state, the glue application speed is synchronized with the material conveying speed in real time, ensuring that each section of the plate obtains consistent bonding conditions. This intelligent and precise bonding technology significantly improves the overall structural tightness of the sandwich panel, preventing core material separation and plate delamination during long-term use.

Continuous Laminating and Shaping Process

Laminating and shaping are the core molding procedures of mineral wool sandwich panels, responsible for compounding pretreated metal sheets and mineral wool core materials into integrated semi-finished panels. The continuous production line adopts constant-pressure continuous laminating technology, abandoning the intermittent pressing mode of traditional single-panel molding equipment. The multi-group roller pressing units arranged in a gradient manner apply uniform and stable pressure to the composite materials, realizing seamless fitting between the upper and lower metal plates and the middle mineral wool core layer. The gradient pressure design ensures that the pressure acts evenly on the whole plate surface, effectively eliminating internal gaps, hollow areas and core material displacement. During the laminating process, the equipment maintains a stable operational speed matching the upstream feeding and glue application procedures to ensure continuous and uninterrupted molding. Meanwhile, the shaping unit is equipped with fine calibration components to adjust the flatness and overall specifications of the composite panel in real time, correcting minor deviations generated in the composite process. The integrated laminating and shaping process completes panel molding in one continuous pass, which not only greatly improves production efficiency, but also ensures the consistency of panel thickness, flatness and structural tightness of each batch of products.

Constant Temperature Curing and Structural Stabilization

After laminating and shaping, the semi-finished panels enter the constant-temperature curing stage, which is crucial for stabilizing the bonding structure and enhancing the overall performance of sandwich panels. The continuous production line is equipped with a fully enclosed constant-temperature curing channel, which provides a stable and uniform temperature environment for the curing reaction of the adhesive layer. The internal temperature of the curing channel can be adjusted stably according to production needs, maintaining a constant reaction condition to ensure thorough curing of the adhesive inside the panel. Compared with natural curing and intermittent high-temperature curing methods, the continuous constant-temperature curing mode makes the adhesive form a dense and stable molecular structure, significantly improving the bonding strength and durability of the composite interface. The curing channel adopts segmented temperature control and heat circulation design, which ensures consistent curing effect of the front and rear sections of the continuously moving panels. During the curing process, the panels are conveyed at a uniform and stable speed to avoid vibration and displacement that may affect the curing quality. This standardized curing process eliminates unstable quality differences caused by inconsistent curing conditions, making the structural performance of finished panels more stable and reliable.

Precision Cutting and Edge Finishing Processing

After the completion of curing and structural stabilization, the continuous production line carries out fixed-length precision cutting and edge finishing of the integrated panels to meet standardized product specifications. The cutting unit adopts high-speed servo cutting technology, which can automatically identify and set cutting lengths according to production parameters, realizing precise fixed-length cutting of continuous long panels. The servo control system ensures high cutting accuracy, with smooth and neat cutting sections without burrs, cracks or material collapse. For different panel width and length specifications, the equipment can complete parameter switching and adaptive adjustment in a short time, with strong production flexibility. The edge finishing process follows the cutting operation, including automatic edge trimming and chamfering treatment of the panel edges, removing residual burrs and irregular edges generated during cutting. This processing step not only optimizes the appearance quality of the finished panels, but also avoids edge damage and potential safety hazards during transportation and installation. The whole cutting and finishing process is fully automated, which effectively improves product consistency, reduces manual finishing workload, and realizes seamless docking with the upstream curing process and downstream stacking process.

Automatic Stacking and Finished Product Management

The automatic stacking unit is the final core functional module of the continuous production line, undertaking the orderly collection, arrangement and temporary storage of finished mineral wool sandwich panels. After precision cutting and finishing, qualified panels are automatically conveyed to the stacking station through the streamlined conveying system. The intelligent stacking device adopts flexible grabbing and placing technology, which can stably pick up single panels and stack them neatly according to fixed layers and specifications. It is equipped with anti-collision and anti-scratch protection settings to avoid surface damage and structural deformation of finished panels during the stacking process. The stacking speed is automatically matched with the upstream production speed, realizing synchronous operation of production and collection without manual intervention. In addition, the finished product management module has automatic counting and sorting functions, which can classify and stack panels of different specifications separately. The orderly automatic stacking mode standardizes the finished product storage state, facilitates subsequent packaging, transportation and warehouse management, and effectively improves the overall automation level of the production line, reducing labor costs and manual management errors.

Intelligent Control and Real-Time Monitoring System

The intelligent centralized control system serves as the core command center of the entire continuous mineral wool sandwich panel production line, realizing integrated management and synchronous scheduling of all production links. The system is equipped with a visualized human-computer interaction interface, through which operators can one-click set core production parameters including panel specifications, operating speed, glue application volume and curing temperature. All operational data of each functional unit is collected and displayed in real time on the control terminal, covering equipment operating status, production progress, material consumption and process parameter changes. The system supports automatic parameter correction and fault early warning functions. When minor parameter deviations or abnormal operating conditions occur in individual units, the system can complete adaptive adjustment in real time to ensure stable continuous production. For potential equipment faults and process abnormalities, the system will trigger early warning prompts to facilitate timely inspection and maintenance. The integrated intelligent control mode unifies the operation rhythm of each production module, avoids asynchronous operation problems of independent equipment, greatly improves production stability and controllability, and realizes refined digital management of the whole production process.

Production Advantages and Application Value of the Line

The continuous mineral wool sandwich panel production line has significant comprehensive advantages over traditional intermittent production equipment in terms of production efficiency, product quality and operational cost. In terms of production efficiency, the fully streamlined uninterrupted production mode eliminates process docking gaps and waiting time, greatly improving single-unit output and batch production capacity. In terms of product quality, the unified process parameters and precise mechanical control make the thickness, bonding strength, flatness and internal structure of each panel highly consistent, with stable overall performance and low defective rate. In terms of operational cost, the high degree of automation reduces manual participation links, effectively saving labor input and reducing human error caused quality problems. In addition, the production line adopts energy-saving operational design and environmentally friendly processing technology, which reduces energy consumption and material waste during production. The high-quality mineral wool sandwich panels produced by the line have excellent thermal insulation, sound insulation and structural stability, and are widely applicable to building enclosure, industrial workshop insulation, cold storage engineering and other fields, providing efficient and reliable manufacturing support for the energy-saving building material industry.
