Fireproof Rock Wool Sandwich Panel Machine

Publication Date: Oct 5, 2026

Fireproof rock wool sandwich panel machine is an integrated automated production system for manufacturing high-performance fire-resistant building panels. It integrates multiple processing procedures to bond metal sheets and rock wool cores stably, delivering durable, insulated composite panels for construction applications.

The fireproof rock wool sandwich panel machine serves as a core automated production system specialized in manufacturing composite building panels with superior fire resistance and thermal insulation properties. Unlike ordinary panel production equipment, it is uniquely optimized for the structural characteristics of rock wool, an inorganic non-combustible core material, achieving seamless composite molding between metal surface layers and rock wool substrates. The entire production process realizes continuous streamlined operation, covering raw material feeding, surface forming, adhesive coating, core material arrangement, composite pressing, curing and fixed-length cutting. This integrated design effectively simplifies traditional scattered production procedures, greatly improving production continuity and product consistency. It adapts to the batch production demands of various building enclosure panels, providing reliable equipment support for energy-saving and fireproof building material manufacturing, and its structural design fully considers the stability requirements of long-term continuous operation.

Raw material feeding and pretreatment is the initial and foundational working stage of the fireproof rock wool sandwich panel line, which directly determines the smooth progress of subsequent processes. The equipment is equipped with matched unwinding and feeding components for metal coil materials, enabling synchronous and stable conveying of upper and lower metal sheets without manual frequent intervention. Meanwhile, it features a dedicated rock wool core material sorting and feeding structure, which can automatically arrange and pave loose rock wool strips into uniform and neat core layers. Before formal composite processing, the built-in pretreatment module completes surface cleaning and preliminary shaping of raw materials, removing surface impurities that may affect bonding effect. This standardized pretreatment process eliminates material arrangement errors caused by manual operation, ensures uniform specification of raw materials entering the composite stage, and lays a solid foundation for stable bonding and consistent quality of finished panels.

Precision adhesive coating technology is a key functional module of the machine to ensure the structural firmness of sandwich panels. The equipment adopts a high-precision constant-pressure uniform gluing system, which can quantitatively and evenly coat high-performance environmental polymer adhesives on the inner surfaces of upper and lower metal sheets and the contact surfaces of rock wool core materials. Different from traditional manual or semi-automatic gluing methods that cause uneven glue thickness and missing coating, the multi-point synchronous gluing mode of the machine realizes full coverage of the bonding area. The system can automatically adjust the glue output according to different material specifications and production speeds, avoiding excessive glue overflow or insufficient bonding dosage. This accurate gluing process effectively enhances the bonding tightness between the metal layer and rock wool core layer, prevents delamination and hollowing of panels in long-term use, and significantly improves the overall structural durability of finished products.

Metal sheet roll forming is an essential process to shape the outer layer of sandwich panels in the whole production flow. The machine is equipped with a multi-group roller forming mechanism with high-precision positioning function. After unwinding and pretreatment, the flat metal coil sheets pass through multiple groups of profiling rollers, and gradually form standardized roof or wall panel profiles through continuous rolling and shaping. The roller group adopts optimized structural design, which can realize flexible switching of different profiling specifications within a certain range, adapting to diverse panel shape production demands. All rolling processes are completed through synchronous mechanical transmission, ensuring consistent flatness, edge straightness and overall dimensional accuracy of each metal sheet. The high-precision forming effect avoids surface wrinkles, deformation and dimensional deviation of metal panels, ensuring the appearance quality and assembly adaptability of subsequent finished sandwich panels.

Rock wool core material precise arrangement and positioning is a unique core process of the fireproof rock wool sandwich panel production line, distinguishing it from ordinary foam sandwich panel production equipment. Rock wool core materials are composed of inorganic mineral fibers with loose texture and irregular fiber arrangement, which puts forward higher requirements for feeding and positioning accuracy. The machine is equipped with a special core material conveying and rotating adjustment device, which can cut whole rock wool wool slabs into uniform filler strips and arrange them in an orderly manner between upper and lower metal sheets. The automatic positioning system can correct the offset of rock wool layers in real time during operation, ensuring the rock wool core fills the entire panel space without gaps or overlapping accumulation. This accurate arrangement mode maximizes the fire resistance and thermal insulation performance of rock wool materials, avoiding local performance defects caused by uneven core material distribution.

Constant temperature and pressure composite pressing is the core working procedure that determines the overall forming quality of sandwich panels. After the completion of gluing and core material arrangement, the semi-finished materials enter the double-belt synchronous pressing module of the machine. This module adopts upper and lower circulating steel belt operation structure, which can provide uniform and stable pressure covering the whole panel surface, completely different from the local point pressure of traditional roller pressing equipment. The closed constant temperature heating system built in the pressing section maintains a stable curing environment, matching the optimal reaction temperature of the adhesive. Under the dual action of constant pressure and constant temperature, the metal layer and rock wool core layer are closely bonded, eliminating internal air gaps and realizing integrated composite molding. This process effectively improves the overall structural compactness of the panel, enhances the shear resistance and structural stability of the product, and avoids core displacement and layer separation in later use.

Intelligent constant temperature curing system is an important guarantee for improving the bonding strength and molding efficiency of sandwich panels. The machine is equipped with an integrated circulating heating and heat preservation structure, which continuously provides stable temperature conditions for the newly composited semi-finished panels. The curing area realizes gradient temperature control, which can meet the gradual curing reaction requirements of high-performance adhesives, avoiding quality problems such as incomplete curing or excessive surface curing caused by single temperature. The fully enclosed heat preservation design reduces heat loss, improves thermal utilization efficiency, and ensures consistent curing effect of panels in different production positions. With the help of the intelligent temperature control system, the equipment can adapt to the curing demands of different environmental temperatures and different adhesive types, realizing efficient and stable curing of composite panels and greatly shortening the production cycle of finished products.

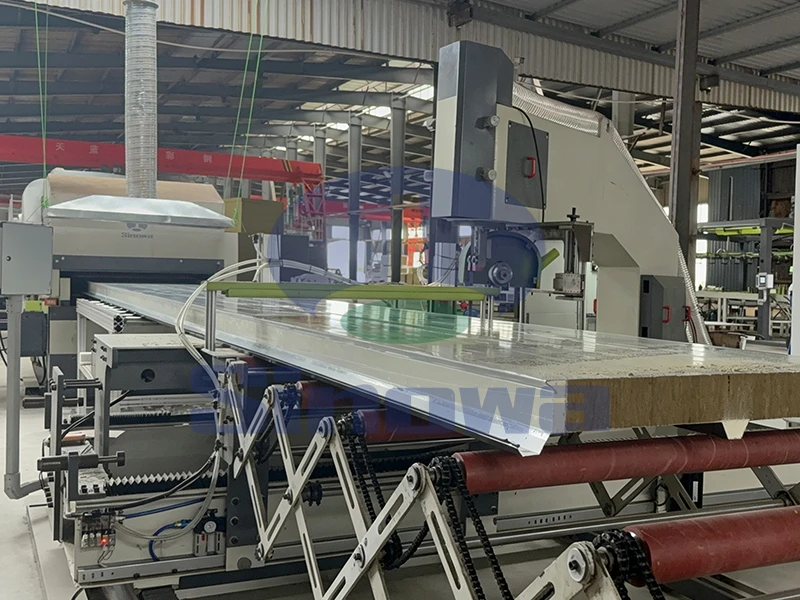

High-precision fixed-length cutting and finishing is the final molding link of the whole rockwool sandwich production line, responsible for turning continuous composite plate blanks into standardized finished products. The machine is equipped with a numerical control automatic cutting system, which can accurately identify the preset plate length parameters and complete fast and smooth fixed-length cutting. The cutting tool is made of high-hardness wear-resistant materials, which can ensure flat and burr-free cutting sections without damaging the surface metal layer and internal rock wool core structure. After cutting, the automatic finishing mechanism simply trims the plate edges to remove tiny burrs and irregular edges generated during cutting. The whole cutting and finishing process is highly automated, with accurate dimensional error control, ensuring that the length and edge specification of each finished panel meet unified production requirements, and improving the overall appearance and assembly precision of the product.

Automatic conveying and finished product sorting system realizes the continuous and orderly output of finished panels and improves the overall automation level of the equipment. After cutting and finishing, the qualified finished panels are stably conveyed to the discharging area through the synchronous conveying system. The rockwool sandwich panel equipment is equipped with a buffer conveying structure, which can effectively avoid panel collision and surface scratch during conveying. The matched sorting and stacking device can automatically complete the orderly stacking of finished panels according to the set specifications, replacing traditional manual carrying and stacking operations. This automatic output and sorting mode not only reduces manual labor investment and improves production efficiency, but also avoids panel damage and specification confusion caused by manual operation. It realizes seamless connection from production molding to finished product storage, forming a fully closed-loop automated production process.

The operational stability and flexible adaptability of the fireproof rock wool sandwich panel production machine make it highly applicable in modern building material production. The whole equipment adopts a modular integrated structure, with stable mechanical transmission performance and low failure rate during long-term continuous operation. It can adapt to the production of sandwich panels with different thicknesses and different surface specifications, meeting the diversified production needs of building enclosure engineering, industrial factory buildings and public building fireproof thermal insulation projects. In addition, the equipment adopts energy-saving operation design, with low energy consumption per unit of product, which helps reduce production costs. Its automated operation mode simplifies production management, and the stable product quality effectively reduces the rate of defective products, making it efficient and reliable special equipment for fireproof rock wool sandwich panel production.
